Nostalgic Warehouse Meadows Plate 2-3/4 in. Backset Timeless Bronze C Grip Entry Set Meadows Knob
Original price was: $281.25.$95.99Current price is: $95.99.
Vintage designs made from solid forged brass for durability
Match your entire home with Nostalgic Warehouse finishes
Nostalgic Warehouse products are designed to last a lifetime
- Safe and Secure Payments, Always
- Your Security is Our Promise
- Efficiency meets excellence in customer care.
- Best price, safe shopping guarantee

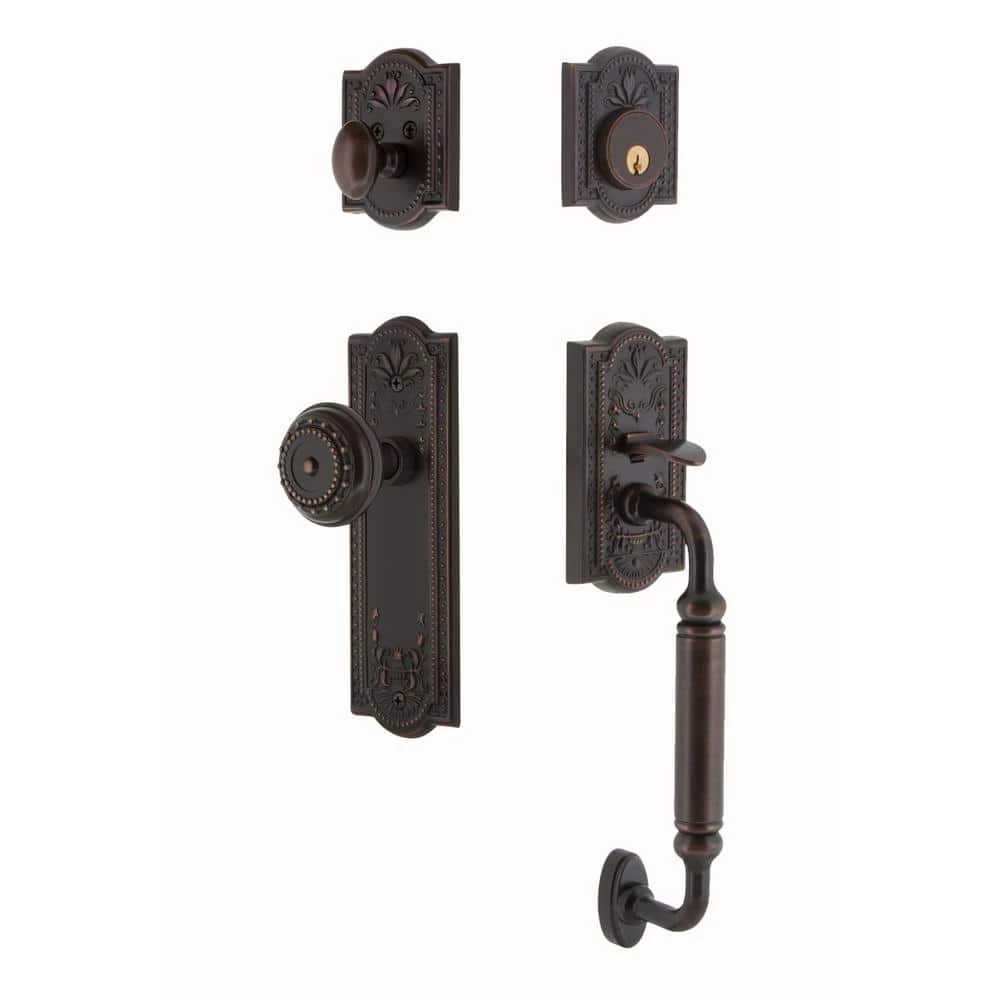

The Meadows Exterior Handleset, with its intricate beaded detailing and botanical flourishes. Creates an inspired design theme. All Nostalgic Warehouse handlesets are mounted on a solid (not plated) forged brass base for durability and beauty.
- Solid forged brass for fine detail
- Complete set for 1-door (both sides)
- Perfect for restoration and easy to install on modern pre-drilled doors
- Single cylinder: most common residential deadbolt; single cylinder deadbolt requires a key to unlock/lock from exterior and thumbturn mechanism to unlock/lock from interior
- 5-year mechanical warranty
- 5-year finish warranty

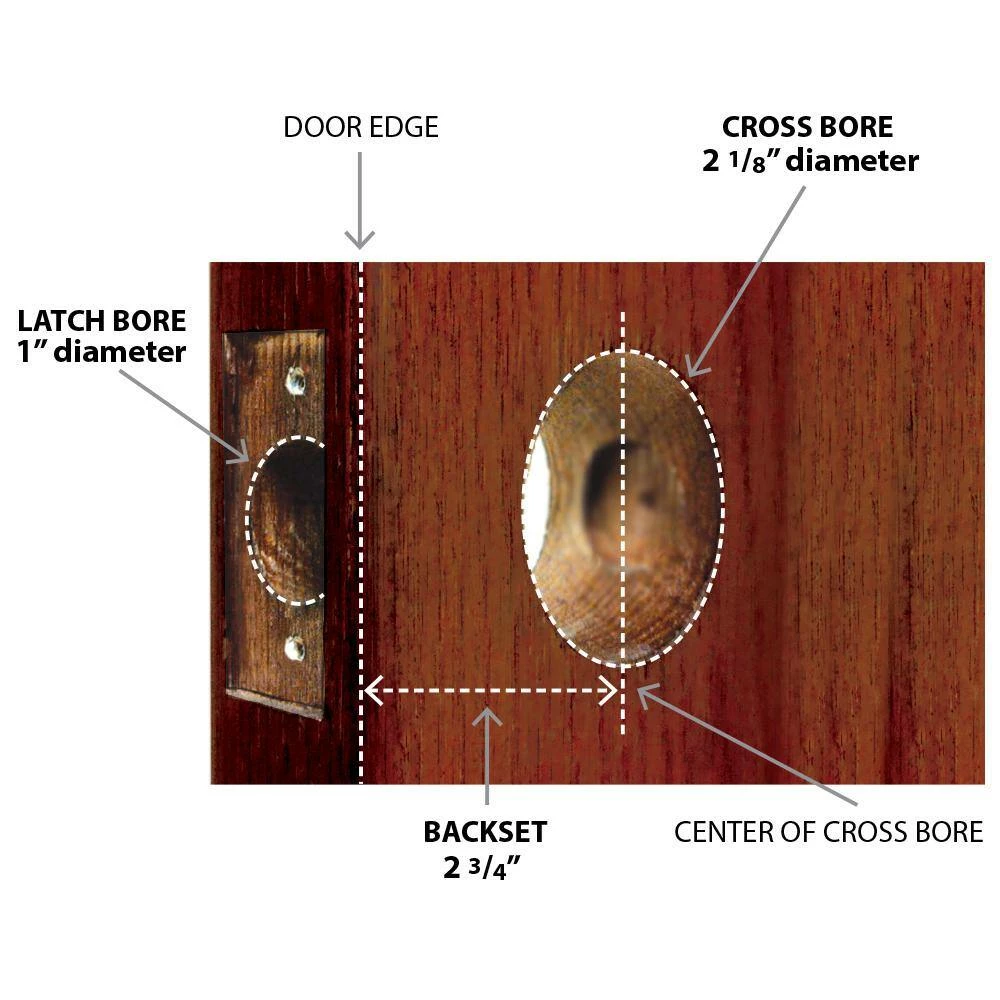

- Backset Size – Distance from the center of Bore Hole to the edge of Door
| Application Type | Entry |
|---|---|
| Knob/lever housing height (in.) | 7.875 |
| Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Deadbolt Strike Height (in.) | 2.25 in |
| Deadbolt Strike Width (in.) | 1 in |
| Deadbolt Throw Length (in.) | 1 in |
| Deadbolt Trim Ring Diameter (in.) | 1.5 in |
| Handle grip length (in.) | 9 |
| Inside top plate length (in.) | 3.375 |
| Inside top plate width (in.) | 2.5 |
| Knob Diameter (in.) | 2.25 in |
| Knob/lever bore hole diameter (in.) | 2.125 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Knob/lever housing width (in.) | 2.625 |
| Backset Size (in.) | 2-3/4 in |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1 |
| Knob/lever throw length (in.) | .5 |
| Maximum Door Thickness (in.) | 2.75 in |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | 1.28 |
| Outside bottom handle plate width (in.) | 1.28 |
| Outside key plate length (in.) | 3.375 |
| Outside key plate width (in.) | 2.5 |
| Outside top handle plate length (in.) | 5.35 |
| Outside top handle plate width (in.) | 2.62 |
| Deadbolt Bore Hole Diameter (in.) | 1 in |
| Assembled Width (in.) | 2.5 in |
| Commercial/Residential | Residential |
| Included | Hardware,Installation Instructions |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Square corner |
| Door Handing | Universal |
| Door Lock Style | Antique |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Mechanical |
| Features | Easy Installation |
| Finish | Timeless Bronze |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Bronze |
| Hardware Finish Family | Bronze |
| Interior/Exterior | Interior/Exterior |
| Assembled Height (in.) | 16.96 in |
| Keying Type | Keyed Different |
| Knob style | Specialty |
| Knob/lever strike | Round corner |
| Lock Type | Keyed |
| Material | Solid Brass |
| Product Weight (lb.) | 5.25 lb |
| Returnable | 90-Day |
| Security/ANSI Grade | N/A |
| Total Number of Keys Included | 2 |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 5-year warranty |
| Assembled Depth (in.) | 3.29 in |
| Projection (in.) | 3.29 |
