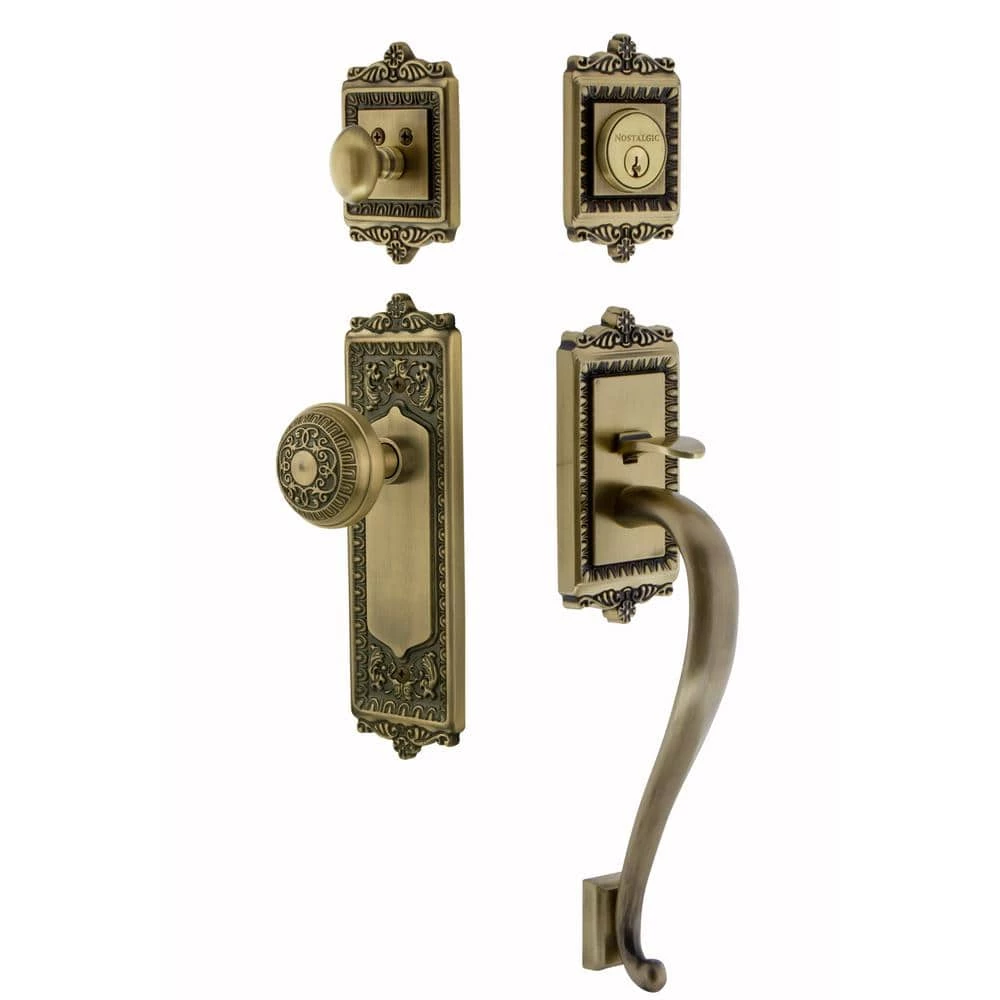

Nostalgic Warehouse Egg and Dart Plate 2-3/8 in. Backset Antique Brass S Grip Entry Set Egg and Dart Knob
Original price was: $281.25.$97.99Current price is: $97.99.
Vintage designs made from solid forged brass for durability
Match your entire home with Nostalgic Warehouse finishes
Nostalgic Warehouse products are designed to last a lifetime
- Safe and Secure Payments, Always
- Your Security is Our Promise
- Efficiency meets excellence in customer care.
- Best price, safe shopping guarantee
With its distinctive repeating border detail, as well as floral crown and foot. The Egg and Dart Exterior Handleset resonates grand style. All Nostalgic Warehouse handlesets are mounted on a solid (not plated) forged brass base for durability and beauty.
- Solid forged brass for fine detail
- Complete set for 1-door (both sides)
- Perfect for restoration and easy to install on modern pre-drilled doors
- Single cylinder: most common residential deadbolt; single cylinder deadbolt requires a key to unlock/lock from exterior and thumbturn mechanism to unlock/lock from interior
- 5-year mechanical warranty
- 5-year finish warranty

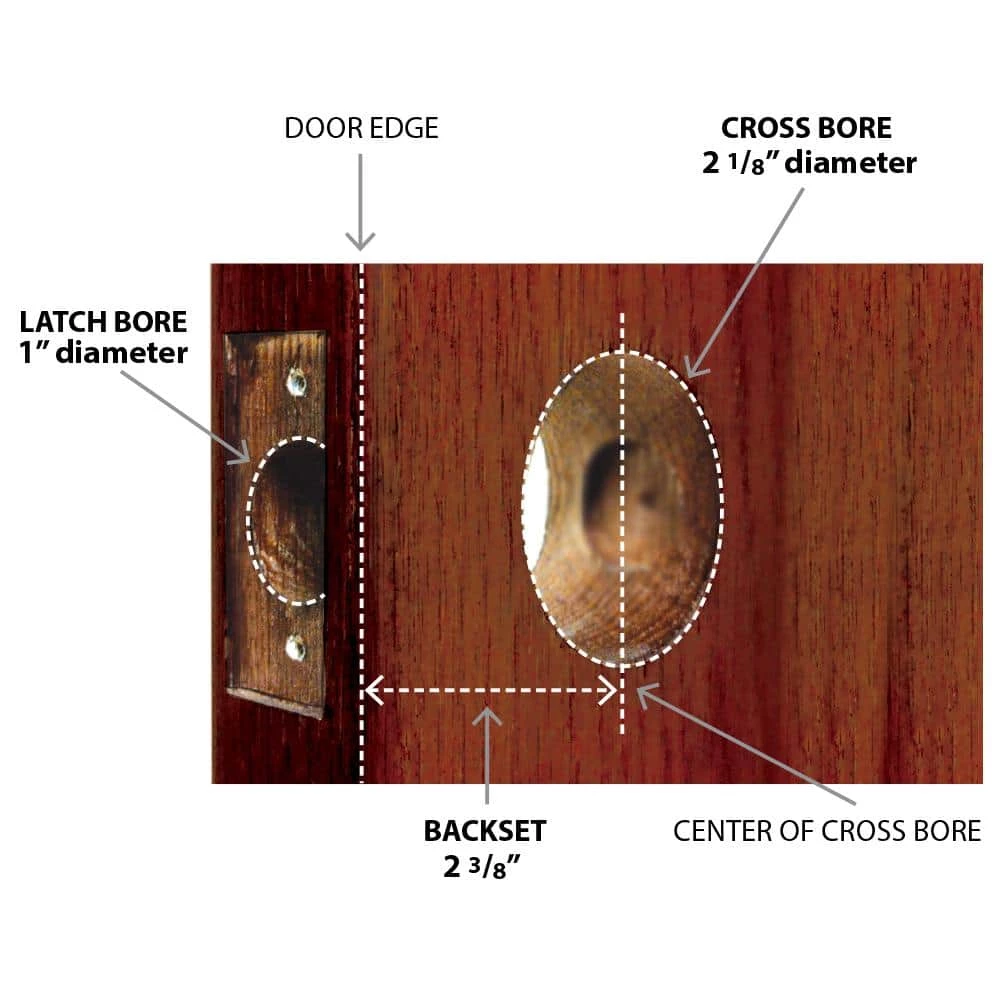

- Backset Size – Distance from the center of Bore Hole to the edge of Door
| Application Type | Entry |
|---|---|
| Knob/lever housing height (in.) | 8.75 |
| Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Deadbolt Strike Height (in.) | 2.25 in |
| Deadbolt Strike Width (in.) | 1 in |
| Deadbolt Throw Length (in.) | 1 in |
| Deadbolt Trim Ring Diameter (in.) | 1.5 in |
| Handle grip length (in.) | 9.5 |
| Inside top plate length (in.) | 4 |
| Inside top plate width (in.) | 2.625 |
| Knob Diameter (in.) | 2.25 in |
| Knob/lever bore hole diameter (in.) | 2.125 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Knob/lever housing width (in.) | 2.625 |
| Backset Size (in.) | 2-3/8 in |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1 |
| Knob/lever throw length (in.) | .5 |
| Maximum Door Thickness (in.) | 2.75 in |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | 2.02 |
| Outside bottom handle plate width (in.) | 0.9375 |
| Outside key plate length (in.) | 4 |
| Outside key plate width (in.) | 2.625 |
| Outside top handle plate length (in.) | 6 |
| Outside top handle plate width (in.) | 2.62 |
| Deadbolt Bore Hole Diameter (in.) | 1 in |
| Assembled Width (in.) | 2.625 in |
| Commercial/Residential | Residential |

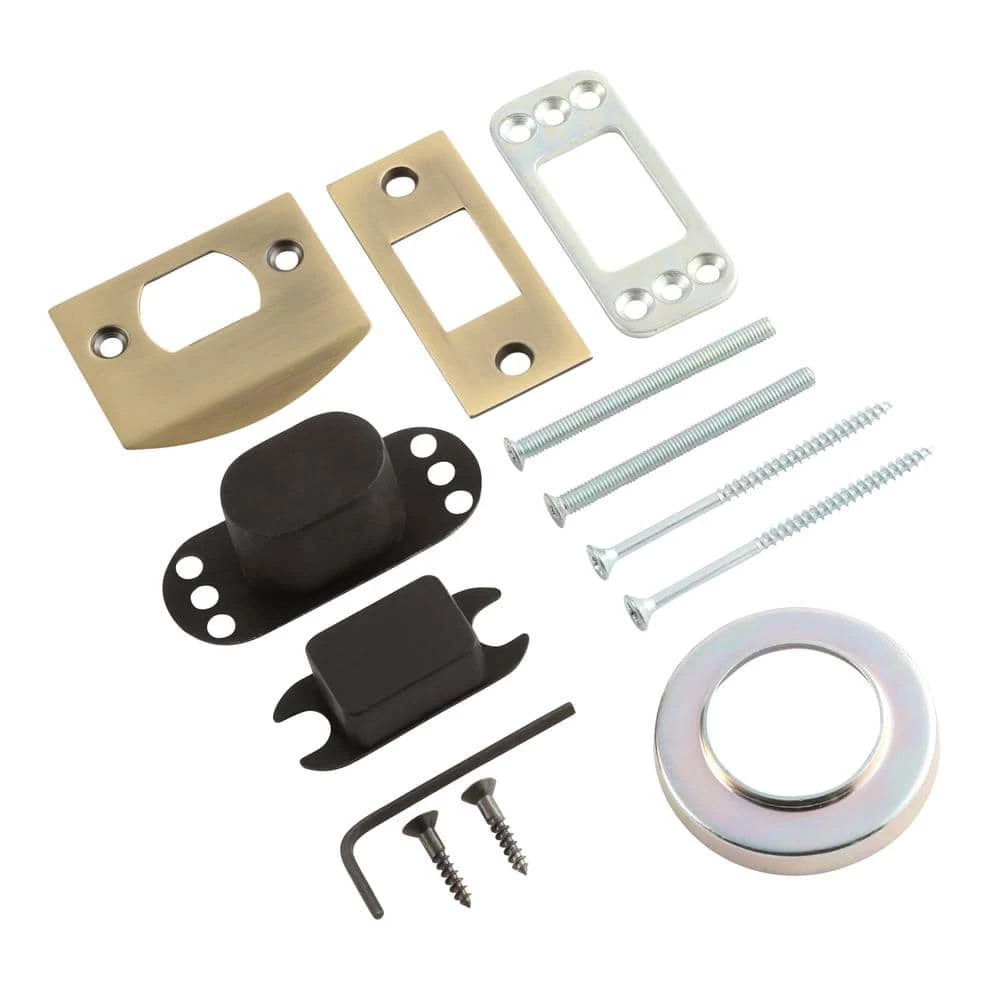

| Included | Hardware,Installation Instructions |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Square corner |
| Door Handing | Universal |
| Door Lock Style | Antique |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Mechanical |
| Features | Easy Installation |
| Finish | Antique Brass |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Brass |
| Hardware Finish Family | Brass |
| Interior/Exterior | Interior/Exterior |
| Assembled Height (in.) | 17.11 in |
| Keying Type | Keyed Different |
| Knob style | Specialty |
| Knob/lever strike | Round corner |
| Lock Type | Keyed |
| Material | Solid Brass |
| Product Weight (lb.) | 5.25 lb |
| Returnable | 90-Day |
| Security/ANSI Grade | N/A |
| Total Number of Keys Included | 2 |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 5-year warranty |
| Assembled Depth (in.) | 3.0 in |
| Projection (in.) | 3.0 |
